MyHotspot- Wireless-LAN for Hotels and Cafés!

Give your customers the flexibility and extra mobility with Wireless Internet Access
MyHotspot is a professional Wireless LAN software solution for providing internet access to your customers. Customers will be redirected to your login page to authenticate with user account or a prepaid-code before getting the Internet access. The PayPal payment option allows your customers to create and pay for network access directly. The software controls download, upload, data transfer, time usage, visited pages. MyHotSpot Billing software runs on your Windows PC, controls unlimited user or prepaid-code accounts, and displays data to customers on your self-branded pages.
MyHotspot billing software is the definitive tool for managing your public WIFI-HotSpot in internet cafes, shools, hotels, bistros or gaming cafe / game center.

MyHotSpot is a freeware program, and can be fully used.

Download MyHotspot 19
Download MyHotspot
Download MyHotspot
Download MyHotspot 19
MyHotspot herunterladen
Server Client
How it works this Hotspot system?
Login page

Login page
When a customer connects to your network and type any website address, login page will be displayed in browser and prompted to authenticate with user or code-account.


Error dialog

Error dialog
The Error dialog will be automatically displayed by entering a invalid data, expired or disabled account.


Design Customization

Design Customization
You can use the configurationmanager of MyHotspot to change the design and access of the login page. You can use this option for example to display your company logo.


Successful Login

Successful Login
If the customer entered correct details, login would be granted. Infobox is useful as it keeps a customer informed about the current balance an remaining time.


Logout

Logout
HotSpot user will be logged out automatically when time expires, by clicking on Logout button, or automatically by any Internet activity in the specified time.


Free Websites

Free Websites
MyHotspot software gives you ability to specify free Websites your users will be able to open without authentication.


Buy Flatrate

Buy Flatrate
FlatRate is access to your Internet at all hours and days within the booked time at a fixed and cheap tariff.


SMS Authentication

SMS Authentication
The SMS authentication can be optionally enabled by creating a new user account or free prepaid-code. A random password or PIN-Code will be automatically generated and sent via SMS message to the user mobile phone number.


Mobile login page

Mobile login page
MyHotspot is specifically designed for use on mobile devices (e.g Smartphones,Tabletts). MyHotspot detect if the customer is on a mobile or desktop device and then redirect them to the appropriate website version.


Free Access

Free Access
Your customer get a free internet access by login with their social account.


Free Login

Free Login
Your customer get a free internet access by entering the access password or by accepting your "Terms and Conditions".


Attention: Windows-Firewall !!

Attention: Windows-Firewall !!
Windows Firewall restricts and blocks network access and the using of MyHotspot. You will have to add "MyHotspot.exe" and "HotspotService.exe" to the exceptions list of your Windows firewall.


Network Configuration

Network Configuration
MyHotspot supports the use of different network configurations:
Internet Connection Sharing (ICS)
DHCP- and NAT Server
Network bridge mode (Bridging Mode)


Adblocker

Adblocker
MyHotspot turn your PC into an Adblock Router. Advertising blocker are an effective way to save your internet bandwidth and protect the privacy of your user.


Installation
Server Client

Multiple components and functions are required:
  • Standard PC computer, running Windows OS (XP/Vista/7/8/10).
  • 2 Netwok cards (USB or Ethernet network card), or 1 Netwok card and USB surf stick (3G/4G/HSDPA/LTE).
  • 2 network cables.
  • Wi-Fi access point or router.
  • Working internet connection.
Hardware installation:
  • Connect the first network card (LAN1) or the USB surf stick to the Internet and make sure that the Internet connection is working on your computer, and the IP assigned to this network card is not "192.168.0.x" and not "192.168.137.x" by using ICS, and is not required for your DHCP range by using DHCP/NAT-server.
  • Connect the second network card (LAN2) to LAN port (not to WAN port) of your wireless access point or wireless router.
    (Example: NETGEAR-WLAN-Router)
  • Configuration of the Wireless Access Point:

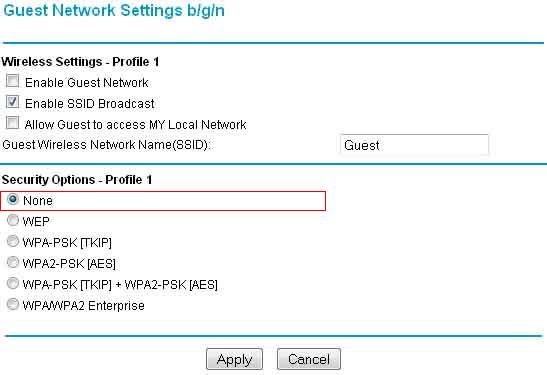

    • Disable by default the wireless security for your router or access point. You can Optionally encrypt the access to your Wireless Router or Access Point.
      (Example: NETGEAR-WLAN-Router)
    • You will also have to specify a static IP addresse of the LAN port of your Wireless access point.You'll need to http in to your access point and assign the new IP address "192.168.0.2" (XP/Vista) or "192.168.137.2" (Win7/8/10) by using ICS, and is required for your DHCP range by using DHCP/NAT-server.
      (Example: NETGEAR-WLAN-Router)
    • Subnet mask: 255.255.255.0
    • If you use a wireless router make sure to disable DHCP-Server. You'll need to http in to your wireless router and manually disable the DHCP-Server.
      (Example: NETGEAR-WLAN-Router)

Software installation:
  • Please Stop or uninstall all programs that use port 80 (TeamViewer, Skype, Filesharing Programs,Adobe Programs...).(Show Example)
  • Go to "Control Panel » Add/Remove Programs » Add/Remove Windows Components" Scroll and search for the Internet Information Services option and click to clear the check box.
  • Start the setup file on your windows PC to Install Myhotspot software.
  • The Internet Connection Sharing (ICS) or DHCP/NAT server must be enabled During the installation process. The network wizard will be launched.
  • You must restart your computer after installing MyHotspot.
  • If you use Windows Vista/7/8/10 make sure to run MyHotspot with administrator rights. Right click on the program, and click on "Run as administrator".(Show Example)
Installation example 1:
Use a USB surf stick (3G/4G/HSDPA/LTE) for internet connection:

Server Client
Installation example 2:
Turn your Laptop into a Mobile Wi-Fi Hotspot:

Server Client

You need to replace your LAN2-Ethernet connection with a W-LAN connection.

Installation example 3:
Hotspot with multiple WLAN Access Points:

Server Client
Screenshots
Management

Management
MyHotspot provides you with a table overview containing all internet sessions on you WIFI-Hotspot. You can use this manager to end a internet session.


Logging

Logging
MyHotspot can be used to record all sessions actions on you WIFI-Hotspot. This allows you to track all visited url pages.


Administration user accounts

Administration user accounts
In the user account overview you can create a new user account, edit or delete a existing account.


Administration Prepaid-Codes

Administration Prepaid-Codes
In the Prepaid-Codes overview You can create a new code list, edit, delete, export or print a existing Prepaid-Code list.


Statistics

Statistics
MyHotspot's statistic will show you all statistical information about the cash sales, session transactions, and logins report. You can either use the filtering function to adjust the number of data records displayed at one time.


POS-System

POS-System
You can use MyHotspot as intelligent POS-System. Use this manager to add money or sell a product or prepaid-codes to a customer.


Tarif

Tarif
MyHotspot support simple, scaled prices and day-dependant rates.

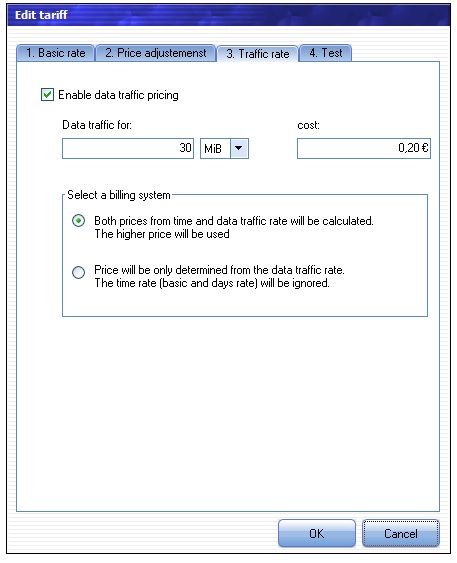

Traffic rate

Traffic rate
MyHotspot support traffic rate. This depends of data volume transferred by Down- and Upload.


Bandwidth Manager

Bandwidth Manager
The bandwidth manager helps you to control download and upload rate for your hotspot clients.


Hotspot configuration

Hotspot configuration
You can use this configurationmanager to set up your hotspot-network, configure design and access of the login page, specify your free webseites, and define your white MAC list.


Firewall and Port filter

Firewall and Port filter
The MyHotspot-Firewall can be used to restrict user access to specific servers. You can also prevent the use of certain Internet services (e.g. file sharing programs).


Web filter

Web filter
The Web Filter helps you to block the access to web pages. You can also prevent the use of certain Internet pages (e.g. social networks). The blocked website will be redirected to the restricted page.


Dynamic bandwidth allocation

Dynamic bandwidth allocation
Dynamic bandwidth allocation is a technique by which the total available traffic bandwidth in your Hotspot can be allocated on demand and fairly between different Hotspot-Cleints.The bandwidth (Down-/Upload Speed) of each Hotspot client will be recalculated each time a new user logs on/off.


Network configuration

Network configuration
You can set up your network using the Windows Internet Connection Sharing (ICS) or a DHCP/NAT server


Multi Login

Multi Login
You allow your guests to register multiple devices with the same access data.


Ticket stations

Ticket stations
The Ticket station allows your guests to create and print out their own prepaid-Codes.


How it works the Free Access with Facebook?
Choose a Media from Social Networks

Choose a Media from Social Networks
Customer choose a media from social networks: e.g: Facebook.


Login with Facebook

Login with Facebook
Customer logs in with his Facebook account.


Click on Like-Button

Click on Like-Button
The customer must click on "Like" to get a free internet access.


Frequently asked questions
Question: How to turn my Laptop into a Mobile Wi-Fi Hotspot? :

You need to replace your LAN2-Ethernet connection with a W-LAN connection.

Server Client

New Features

  • PayPal - payment by credit card
  • User accounts
  • Prepaid-Codes
  • Free web sites
  • Port and service filter
  • Firewall
  • Blocking of file sharing
  • URL-log files
  • SMS Authentication
  • Bandwidth Manager
  • Dynamic bandwidth allocation
  • Flat rates
  • DHCP and NAT
  • Bridging Mode
  • Adblocker
  • Multi Login
  • Multi Update
  • Free Access via:
    • Facebook
    • Twitter
    • Google+
    • Access password
    • Accepting "T&Cs"

Features

  • 100% profit
  • No ongoing leasing
  • No special hardware
  • Data preservation
  • Windows software

Read more about new features and improvements

You can test for free all features of the unregistered version of MyCyberCafe for 20 days, you will have to put up with the following limitations unless you register your MyCyberCafe version: No more than 2 Clients at a time will be able to log.
